Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control

  • Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control
  • Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control
  • Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control
  • Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control
  • Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control
  • Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control
Herkunftsort CHINA
Markenname COENG
Zertifizierung CE
Modellnummer HD8000
Dokument HD8000.xlsx
Min Bestellmenge 1
Verpackung Informationen Holzkoffer
Lieferzeit 10-30 Arbeitstage
Zahlungsbedingungen L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit 20000SETS/YEAR

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Nennspannung der Netzseite 2: 1900V 3: 3300V 6: 6600V A: 10kV Nennspannung der Motorseite 3: 3300V 6: 6600V A: 10kV
Leistung 10: 10MVA Berichtigungsmethode P: PWM D: Dioden-Grundrichtigung
Gemeinsame Bus-Rektifizierungsmethode Blank: einmalige Berichtigung 2: doppelte Berichtigung übliche Bus-Wechselrichtermethode Leerstand: Einzel D: Doppelumrichter T: Dreifachumrichter
Hervorheben

variable frequency drive with speed accuracy

,

variable frequency converter for process control

,

high precision variable frequency drive
Hinterlass eine Nachricht
Produkt-Beschreibung
Product Introduction

HD8000 series VFD is a high-power drive system includes AC-DC-AC comverter and DC-AC common DC bus multi-axis motor drive unit. The maximum power can reach 30MVA for single machine and 60MVA for parallel operation. Its modular hardware and engineering software design concept enables it to operate for various complex conditions.

HD8000 series VFD adopts presspack IGCTand Diode as well as liquid cooling method, the whole machine meets the protection level IP54 and it has super environmental adaptability, high reliability, excellent heat dissipation performance and small volume, there are two-quadrant and four-quadrant rectification solutions.

  • Characteristics: single/multiple axis drive, IP54 protection, two-quadrant/four-quadrant
  • Design: modular design
  • Rectification: multi-pulse basic rectification, smart rectification and PWM rectification
  • Voltage rate: 1900V3000V (3300V), 6000V, (6600V), 10000V
  • Maximum power: 30MVA (single) 60MVA (parallel)
  • Compitable motor: asynchronous induction motor, permanent magnet synchronous motor, Electrically excited synchronous motor
  • Control method: V/F, close-loop vector control with sensor, open-loop vector control without sensor
  • Cooling: water cooling
Product Applicantion
  • Metallurgical Engineering
  • Oil and Gas Transportation
  • Testing Platform
  • Renewable Energy
  • Rail Transportation
  • Mining&Lifting
  • Marine Equipment
  • LNG
  • Power Source
  • Energy Storage
Technical Specification
HD8000 Technical Specifications
HD8000 3306 3308 3310 3312 2624 AA30 6640 AA60
R Basical ectification Input voltage 3300V 1900V 10kV 6600V 10kV
Input frquency 45Hz-66Hz
Overload 110%@ rated current, 120%@ rated current 60s
Efficiency ≥99%
Power factor ≥0.95 (Rated current, equipped with 2% AC input reactor)
Protection overload protection, overheat protection, short circuit protection, fault pre-judgment, etc
RecPWM
tification		 Input frquency 45Hz-66Hz
Overload 110%@ rated current, 120%@ rated current 60s
Efficiency ≥98.5%
Power factor adjustable (default 1)
Protection overload protection, overheat protection, short circuit protection, fault pre-judgment, etc
Inverter Output voltage 3300V 6600V 10kV 6600V 10kV
Max output frequency

110Hz
Speed stable accuracy OLVC: 0.01%, CLVC: 0.01% OLVC: 0.01%, CLVC: 0.01%
Speed pulse OLVC: 0.2%, CLVC: 0.1% OLVC: 0.4%, CLVC: 0.2%
Start torque OLVC: 150%, CLVC: 200% OLVC: 130%, CLVC: 150%
Torque control V/F: Yes, OLVC: Yes, CLVC: Yes V/F: Yes, OLVC: Yes, CLVC: Yes
Torque accuracy OLVC: 5%, CLVC: 2% OLVC: 5%, CLVC: 2%
Torque response time OLVC: 5ms, CLVC: 5ms OLVC: 5ms, CLVC: 5ms
Rotating response time OLVC: 100ms, CLVC: 100ms OLVC: 150ms, CLVC: 150ms
Dynamic drop equivalent OLVC: 0.5%*s, CLVC: 0.25%*s OLVC: 1%*s, CLVC: 0.5%*s
Overload 110%@rated current, 120%@rated current 60s
Environment Temperature inlet temperature ≤40
Altitude ≤4000m (2000m~4000m de-rating)
Mechanical Data IP protection IP54
Cooling Water cooling
Anti corrosion C4-M
HD8000 Series Selection Table
Module Grid Voltage Motor Voltage Power RatedI Max f Size (W*D*H) (mm) Note
HD8000-3306 3300V 3300V 6MVA 1050A 110Hz 4600*1300*2200 Contains water cool cabinet
HD8000-3308 8MVA 1400A
HD8000-3310 10MVA 1750A
HD8000-3312 12MVA 2100A
HD8000-2624 1900V 6600V 24MVA 2100A 7800*1300*2200
HD8000-AA30 10kV 10kV 30MVA 1750A 10600*1300*2200
HD8000-6640 6600V 6600V 40MVA 3500A 15600*1300*2200
HD8000-AA60 10kV 10kV 60MVA 3500A 21200*1600*2200

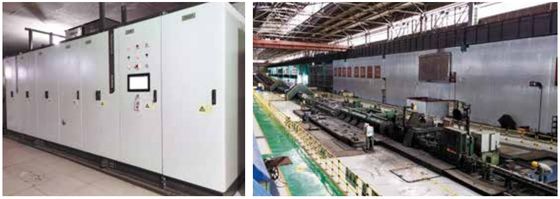

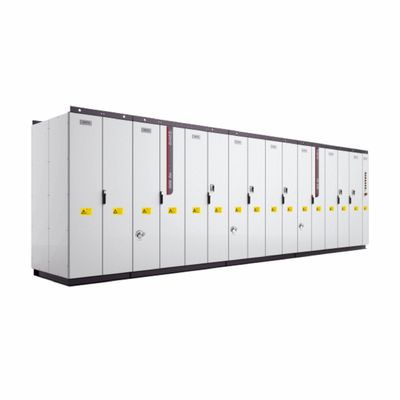

Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control 0Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control 1Variable Frequency Drive with Exceptional 0.01 Percent Speed Accuracy for Critical Process Control 2
Advantages and characteristics of battery energy storage systems in differentcountries
1. Mexico
  • Suitable for automotive and manufacturing sectors.
  • Handles voltage variations common in industrial parks.
  • High starting torque for heavy machinery.
  • Easy installation reduces setup time and cost.
  • Water-cooling system ideal for hot climates.
  • Compatible with Baldor and other common motor brands.
  • Robust protection systems enhance safety.
  • Low total cost of ownership.
2. Turkey
  • Bridges European and Asian motor standards.
  • High power factor correction reduces penalties.
  • Suitable for textile, marine, and construction sectors.
  • Resilient to seasonal temperature variations.
  • Easy to maintain with local service networks.
  • Scalable from medium to high power applications.
  • Supports both 3300V and 6600V systems.
  • Long warranty and reliable performance.
3. Canada
  • Operates reliably in cold climates with built-in heaters.
  • High altitude capability for Rocky Mountain operations.
  • Suitable for pulp & paper, mining, and hydroelectric plants.
  • Complies with CSA and UL standards.
  • Energy-efficient operation aligns with green initiatives.
  • Easy to interface with existing Allen-Bradley systems.
  • Low vibration and noise for urban installations.
  • Remote monitoring and diagnostics support.
4. Indonesia
  • Resistant to high humidity and salt corrosion.
  • Ideal for palm oil, mining, and marine applications.
  • Handles frequent power outages with smooth restart.
  • Simple user interface for easy operation.
  • Local service teams available for quick support.
  • High overload capacity for processing machinery.
  • Affordable maintenance and spare parts.
  • Compatible with local and international voltage levels.
5. United Arab Emirates
  • Built for extreme heat and dusty conditions.
  • Ideal for oil, gas, and HVAC applications.
  • 10kV models reduce cabling costs in large plants.
  • High reliability reduces downtime in critical processes.
  • Meets IEC and local regulatory standards.
  • Easy to scale with modular design.
  • Advanced diagnostics for predictive maintenance.
  • Low energy consumption supports sustainability goals.
