Hybrid Solar Inverter 8.5kw 11KVA 11kw Single Phase Pure Sine Wave MPPT Detachable Dust Cover
| Herkunftsort | Guangdong, China |
|---|---|
| Markenname | COENG |
| Zertifizierung | CE, IEC |
| Modellnummer | M11000T-48PL |
| Dokument | M series parallel capable 8...-5.pdf |
| Min Bestellmenge | 1 |
| Verpackung Informationen | Karton, Palette |
| Lieferzeit | 10-30 Arbeitstage |
| Zahlungsbedingungen | L/C, T/T, Western Union |
| Versorgungsmaterial-Fähigkeit | 20000 Stück/Monat |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails

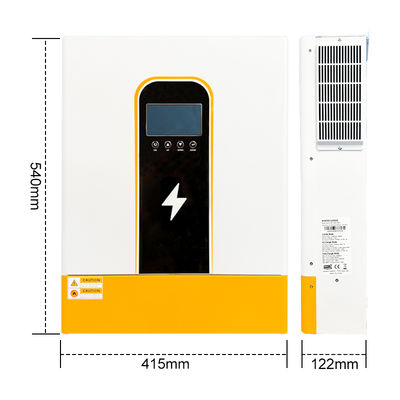

| Größe | 540*415*122mm | Batteriespannung | 48 V |
|---|---|---|---|
| Eingangsspannung | 230 VAC | OEM | OEM akzeptieren |
| Wechselrichtertyp | Hybrid -Solarwechselrichter | Ausgangstyp | Einzelne, reine Sinuswelle |
| Bruttogewicht | 15,5 kg | ||
| Hervorheben | 8.5kw hybrid solar inverter,11kw single phase inverter with MPPT,detachable dust cover solar inverter |
||
Produkt-Beschreibung
| M8500T-48PL | M11000T-48PL | |
|---|---|---|
| Model Number | M8500T-48PL | M11000T-48PL |
| Place of Origin | China | China |
| Mounting Method | Wall Bracket | Wall Bracket |
| Nominal Battery Voltage (V) | 48VDC | 48VDC |
| Parallel Capacity· | YES, 6units | YES, 6units |
| Lithium Battery activation | YES( By PV or Utility) | YES( By PV or Utility) |
| Nominal Voltage | 230VAC | 230VAC |
| Frequency | 50/60Hz | 50/60Hz |
| Waveform | Pure Sine wave | Pure Sine wave |
| Solar Charger Type | MPPT | MPPT |
| Communication Interface | RS232+RS485+Dry-contact | RS232+RS485+Dry-contact |
| PV Array MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC |
| Surge Power | 17000VA | 22000VA |
| Size | 540*415*122mm | 540*415*122mm |
| Weight | 14.5kg | 15.5kg |
| Operating Temperature Range | (-10'℃ to 50℃) | (-10'℃ to 50℃) |
Product Features.
- Dual AC output
- Built-in 2 MPPT
- Parallel max up to 6 units
- Lithium battery activation function by PV or Utility
- Compatible work with LiFePO4 battery via RS485
- Pure Sine Wave
- Power factor 1.0
- PV Input 500Vdc Max
- Built-in MPPT 140A/160A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wifi remote monitoring optional
- Support multiple output priority: SuB, SBU, SUF
- EQ function to optimize battery performance and extend lifecycle
