48V 5.5kw 6.2kw Hybrid Solar Inverter Pure Sine Wave Single Phase Solar Hybrid Inverter 6200W 6.2KVA Off Grid Solar Inverter
| Herkunftsort | Guangdong, China |
|---|---|
| Markenname | COENG |
| Zertifizierung | CE, IEC |
| Modellnummer | EM (PV60-500VDC) 6200 48L |
| Dokument | EM1.5-6.2.pdf |
| Min Bestellmenge | 1 |
| Verpackung Informationen | Karton, Palette |
| Lieferzeit | 10-30 Arbeitstage |
| Zahlungsbedingungen | L/C, T/T, Western Union |
| Versorgungsmaterial-Fähigkeit | 20000 Stück/Monat |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails

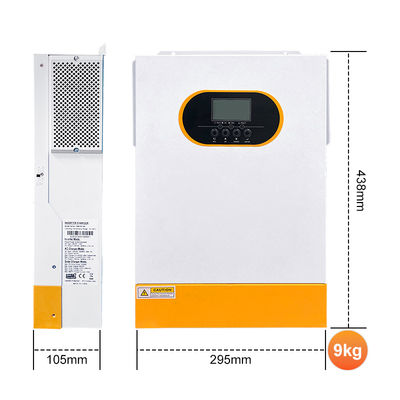

| Größe | 438*295*105 mm | Batteriespannung | 24 V/48 V |
|---|---|---|---|
| Eingangsspannung | 230 VAC | OEM | OEM akzeptieren |
| Wechselrichtertyp | Hybrid -Solarwechselrichter | Ausgangstyp | Einzelne, reine Sinuswelle |
| Bruttogewicht | 9 kg | ||
| Hervorheben | 48V hybrid solar inverter,6.2kw pure sine wave inverter,off grid solar inverter 6200W |
||
Produkt-Beschreibung
| EM3500-24L | EM5500-48L | EM6200-48L | |
|---|---|---|---|
| Model Number | EM3500-24L | EM5500-48L | EM6200-48L |
| Place of Origin | China | China | China |
| Mounting Method | Wall Bracket | Wall Bracket | Wall Bracket |

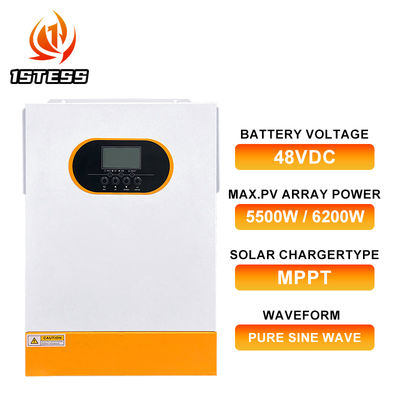

| Nominal Battery Voltage (V) | 24VDC | 48VDC | 48VDC |
| Lithium Battery activation | YES( By PV or Utility) | YES( By PV or Utility) | YES( By PV or Utility) |

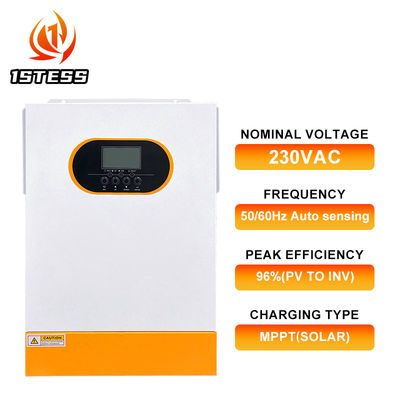

| Nominal Voltage | 230VAC | 230VAC | 230VAC |
| Lithium Battery communication | YES(RS485) | YES(RS485) | YES(RS485) |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Waveform | Pure Sine wave | Pure Sine wave | Pure Sine wave |
| Solar Charger Type | MPPT | MPPT | MPPT |

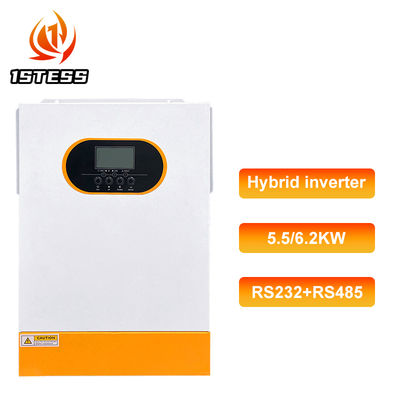

| Communication Interface | RS232+RS485 | RS232+RS485 | RS232+RS485 |
| PV Array MPPT Voltage Range | 60VDC~500VDC | 60VDC~500VDC | 60VDC~500VDC |
| Surge Power | 7000VA | 11000VA | 1240VA |
| Size | 358*295*100mm | 438*295*105mm | 438*295*105mm |
| Weight | 7kg | 9kg | 9kg |
| Operating Temperature Range | (-10'℃ to 50℃) | (-10'℃ to 50℃) | (-10'℃ to 50℃) |
Product Features
- Lithium battery activation function by PV or Utility
- Compatible work with lifepo4 battery via Rs485
- PVInput 500Vdc Max
- Built-in MPPT60A/100A/120A
- Detachable dust coverforharsh environment
- Wifi remote monitoring optional
- Support multiple output priority:UTL,SOL,SBU,SUB
- EQ function to optimize battery performance and extend lifecycle
